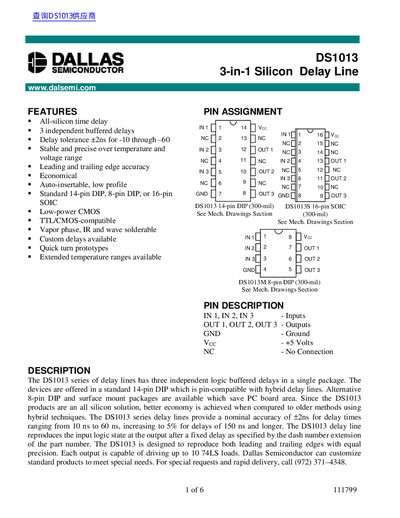

The DS1013 series of delay lines has three independent logic buffered delays in a single package. The devices provide stable and precise delays over a range of temperatures and voltages. They are economical, low-power, auto-insertable, and available in various pin configurations.
The DS1013 series is an all‑silicon delay line offering three independent logic‑buffered delays in a single package. It delivers a nominal accuracy of ±2 ns for delays from 10 ns to 60 ns and maintains precision over temperature and voltage ranges. Each output can drive up to 10 74LS loads and the device is TTL/CMOS compatible.
The part is available in standard 14‑pin DIP, 8‑pin DIP, or 16‑pin SOIC packages. Absolute maximum ratings include a supply voltage range of –1.0 V to +7.0 V and operating temperature from 0 °C to 70 °C. Detailed electrical characteristics, timing diagrams, and test setup procedures are provided for design verification.
| Delay tolerance | ±2 ns for 10‑60 ns, ±3 % for 70‑100 ns, ±5 % for ≥150 ns |
|---|---|
| Delay per output (ns) | 10 to 200 ns selectable |
| Supply voltage (VCC) | 4.75 V – 5.25 V |
| High‑level input voltage (VIH) | 2.2 V |
| Low‑level input voltage (VIL) | 0.8 V |
| High‑level output current (IOH) | 1.0 mA |
| Low‑level output current (IOL) | 12.0 mA |
| Operating temperature | 0 °C to 70 °C |
| Storage temperature | -55 °C to +125 °C |
| Soldering temperature | 260 °C for 10 s |
| Input capacitance | 51 pF |
| Output drive capability | Up to 10 74LS loads per output |
| Package options | 14‑pin DIP, 8‑pin DIP, 16‑pin SOIC |
The DS1013 provides ±2 ns tolerance for delays between 10 ns and 60 ns, ±3 % for 70‑100 ns, and ±5 % for delays of 150 ns and longer.
Each output can drive up to ten 74LS loads.
The device is offered in a standard 14‑pin DIP, an 8‑pin DIP, and a 16‑pin SOIC package.
The absolute maximum voltage on any pin is –1.0 V to +7.0 V, and the operating temperature range is 0 °C to 70 °C.
