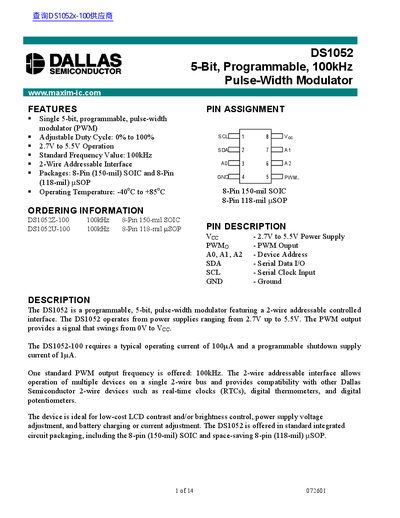

The DS1052 is a programmable 5-bit pulse-width modulator with adjustable duty cycle, operating voltage range of 2.7V to 5.5V, standard frequency value of 100kHz, and a 2-wire addressable interface.
The DS1052 is a single‑chip, 5‑bit programmable pulse‑width modulator that operates from 2.7 V to 5.5 V. It provides a 100 kHz PWM output whose duty cycle can be set from 0 % to 96.88 % (full‑on command gives 100 %).
Communication is handled via a 2‑wire addressable serial interface compatible with other Dallas Semiconductor devices. Up to eight devices can share the bus, each selected by three address pins (A2, A1, A0). The datasheet includes electrical characteristics, absolute maximum ratings, and typical operating curves.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Standard PWM frequency | 100 kHz |
| Resolution | 5 bits |
| Duty‑cycle range | 0 % to 96.88 % (100 % with full‑on command) |
| Standby current (typical) | 0.1 µA |
The DS1052 operates at a standard PWM frequency of 100 kHz.
Up to eight devices can be addressed on the 2‑wire bus using the three address pins.
The DS1052 requires a supply voltage between 2.7 V and 5.5 V.
