The DS1012 is a 2-in-1 sub-miniature silicon delay line with features such as low power consumption, multiple input/output options, and high precision delay.
The Dallas DS1012 is a 2‑in‑1 sub‑miniature silicon delay line with optional logic functions. It offers two independent buffered delays per input, selectable logic outputs (AND, NAND, OR, NOR, XOR, XNOR, HALF‑XOR, HALF‑XNOR), and optional complemented outputs. The device is available in an 8‑pin DIP or an 8‑pin mini‑SOIC package.

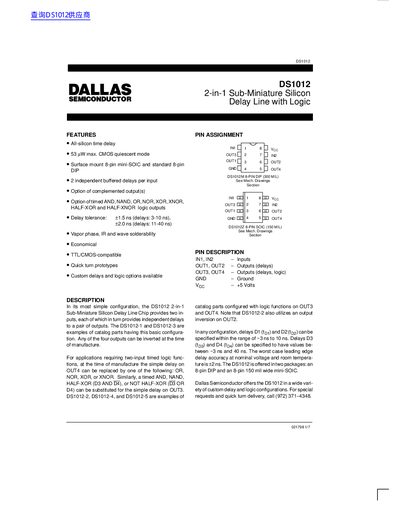

The manual provides detailed pin assignments, electrical characteristics, absolute maximum ratings, and a complete test setup for measuring timing parameters. It also lists the full range of part numbers and their corresponding delay configurations.
| Supply Voltage (Vcc) typical | 5.00 V |
|---|---|
| Quiescent Current (typical) | 10 pA |
| Input Capacitance (typical) | 10 pF |
Typical quiescent current is 10 pA.
OUT3 and OUT4 can be configured as AND, NAND, OR, NOR, XOR, XNOR, HALF‑XOR, HALF‑XNOR, or as simple delays, with optional output inversion.
