QTP8 1x36/2x36 is a member of the EMERALD OSRAM QUICKTRONIC series of energy saving electronic ballasts, suitable for T8/∅26mm fluorescent lamps. It has a 50,000-hour life and a 10% maximum failure rate (tc=75°C). It can reliably light the lamp in the temperature range of -25°C to +55°C. The filament preheating time is optimized, and the lighting time is less than 2 seconds. It is suitable for PC I + II type luminaires, with a constant light output, a voltage range of UN=198V~264V, and meets the CELMA energy classification EEI=A2, and can realize automatic safety shutdown, automatic restart.

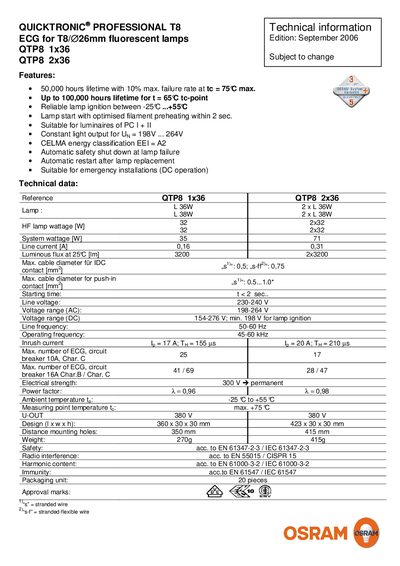

This handbook describes the QUICKTRONIC® PROFESSIONAL T8 electronic control gear (ECG) for 26 mm T8 fluorescent lamps. It covers two variants, QTP8 1x36 and QTP8 2x36, and includes features such as long lamp lifetime, fast start, and suitability for emergency installations.
Key technical data include line voltage 230‑240 V, AC voltage range 198‑264 V, DC voltage range 154‑276 V, system wattage 35 W (1x36) and 71 W (2x36), and power factor up to 0.98. Safety compliance follows EN 61347‑2‑3, EN 55015, EN 61000‑3‑2 and EN 61547 standards.
| Lifetime (1x36) | 50,000 h (10 % max failure at 75 °C) |
|---|---|
| Lifetime (2x36) | Up to 100,000 h at 65 °C |
| Lamp start time | ≤ 2 s |
| Line voltage | 230‑240 V |
| AC voltage range | 198‑264 V |
| DC voltage range | 154‑276 V (min. 198 V for ignition) |
| System wattage | 35 W (1x36), 71 W (2x36) |
| Line current | 0.16 A (1x36), 0.31 A (2x36) |
Up to 2.0 m for pins 21 and 22, and up to 1.5 m for pins 26 and 27.
The line voltage is 230‑240 V and the AC voltage range is 198‑264 V.
