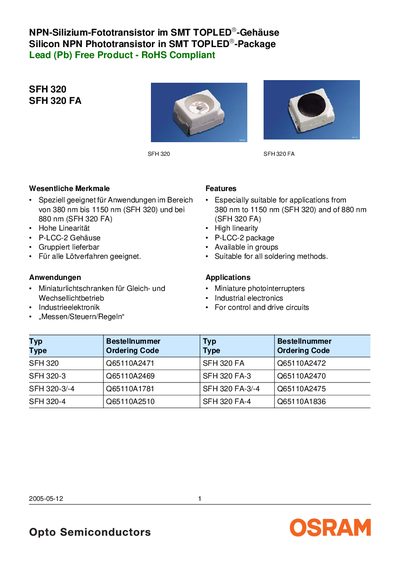

SFH 320 SFH 320 FA is an NPN silicon phototransistor suitable for applications from 380 nm to 1150 nm (SFH 320) and 880 nm (SFH 320 FA). It features high linearity, P-LCC-2 package, and is suitable for all soldering methods. It is used in miniature photointerrupters, industrial electronics, and control and drive circuits.
The SFH 320 series are NPN silicon phototransistors offered in a SMT TOPLED® package. They are suitable for applications from 380 nm to 1150 nm (SFH 320) and 880 nm (SFH 320 FA) and feature high linearity, group delivery, and compatibility with all soldering methods.
The document provides maximum ratings, electrical characteristics, package dimensions, recommended solder‑pad design, and soldering profiles. It also includes handling, packing, and regulatory information from OSRAM Opto Semiconductors. This manual is written in German.
The SFH 320 FA is sensitive from 880 nm up to 1150 nm.
