SFH 5400 logic gate detector is suitable for applications from 500 to 900 nm, with integrated Schmitt trigger, SMT package, TTL and CMOS compatible, push-pull output.

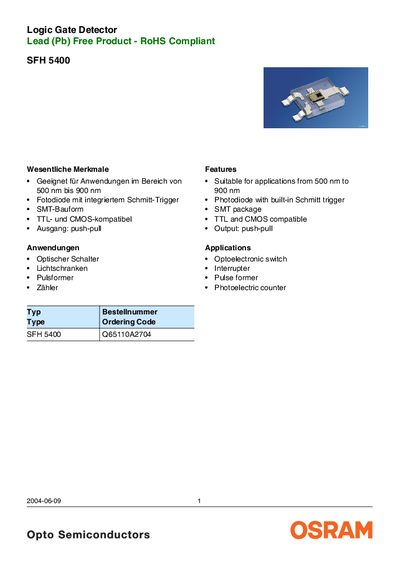

The SFH 5400 is a logic‑gate detector photodiode with an integrated Schmitt‑trigger, offered in an SMT package. It is TTL‑ and CMOS‑compatible and provides a push‑pull output suitable for optoelectronic switches, interrupters, pulse formers, and photoelectric counters.
The datasheet lists maximum ratings, electrical characteristics, functional parameters such as rise/fall times, and recommended solder‑pad designs. It also includes RoHS compliance information and packaging guidelines.
| Wavelength range | 500 nm – 900 nm |
|---|---|
| Package type | SMT |
| Output type | push‑pull |
| Output current | -25 mA – 40 mA |
| Total output power | 100 mW |
Yes, the SFH 5400 is a lead‑free product and RoHS compliant.
It can be used in optoelectronic switches, interrupters, pulse formers, and photoelectric counters.
