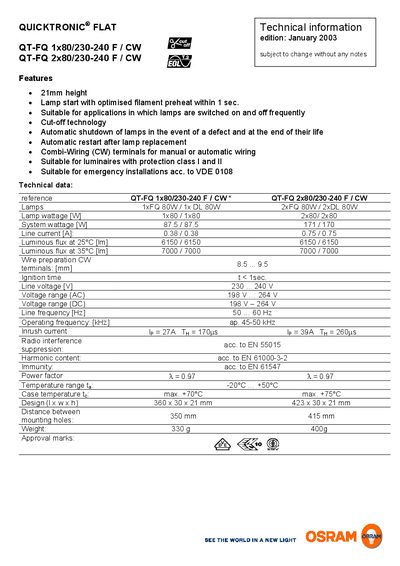

QUICKTRONIC FLAT QT-FQ 1x80/230-240 F / CW is a lamp ballast with a height of 21mm. It features quick lamp start, automatic shutdown and restart, and is suitable for frequently switched lamps.
The QT-FQ series from OSRAM SYLVANIA provides flat, compact emergency lamps with cut‑off technology and automatic restart after replacement. They are suitable for luminaires with protection class I and II and meet VDE 0108 emergency installation requirements.
Key specifications include a lamp start time under 1 s, power factor of 0.97, operating voltage 230‑240 V (AC range 198‑264 V), and luminous flux up to 7 000 lm. Mechanical dimensions are 360 × 30 × 21 mm (1‑lamp) and 423 × 30 × 21 mm (2‑lamp) with weights of 330 g and 400 g respectively.
| Lamp wattage | 1 × 80 W / 2 × 80 W |
|---|---|
| System wattage | 87.5 W (1‑lamp) / 171 W (2‑lamp) |
| Line current | 0.38 A (1‑lamp) / 0.75 A (2‑lamp) |
| Luminous flux at 25 °C | 6 150 lm (1‑lamp) / 6 150 lm (2‑lamp) |
| Voltage range (AC) | 198 V – 264 V |
| Power factor | 0.97 |
| Operating temperature range | -20 °C … +50 °C |
| Weight | 330 g (1‑lamp) / 400 g (2‑lamp) |
| Design dimensions (L×W×H) | 360 × 30 × 21 mm (1‑lamp) / 423 × 30 × 21 mm (2‑lamp) |
The lamp starts with an optimised filament pre‑heat within 1 second.
They operate at line voltage 230 V – 240 V, with an AC voltage range of 198 V – 264 V.
The power factor is 0.97.
They are rated for temperatures from –20 °C to +50 °C.
