This document describes the features and characteristics of the smallest mains voltage halogen lamp in the OSRAM HALOPIN COMPACT HAL M-M series, including UV filter, safety fuse, and average life time.

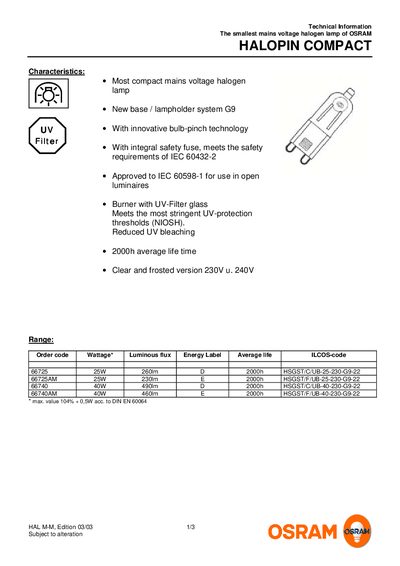

The HALOPIN COMPACT is OSRAM's smallest mains‑voltage halogen lamp, offered in 25 W and 40 W versions with both clear and frosted glass. The sheet provides key characteristics such as UV‑filter glass, an integral safety fuse and compliance with IEC safety standards.
Important data include wattage, luminous flux, colour temperature, dimensions, operating temperatures and recommended voltage. Safety notes cover handling, minimum safety distance and disposal instructions.
| Wattage | 25 W, 40 W |
|---|---|
| Luminous flux | 260 lm (25 W), 490 lm (40 W) |
| Average life | 2000 h |
| Colour temperature | 2800 K ±100 |
| Overall length | 43.0 mm |
| Bulb diameter | 14.0 mm |
| Operating voltage | 230 V |
| Lamp holder part number | BUB 25.830.100.00 |
The average lifetime is specified as 2000 hours.
The lamp is designed for a 230 V mains supply.
Do not touch the bulb with bare hands and maintain the minimum safety distance as required by IEC standards.
