This document is an information manual for the HALOPAR 16 HAL M-M halogen lamp model. It introduces the product's features and characteristics, including power, luminous intensity, beam angle, voltage, and life span.

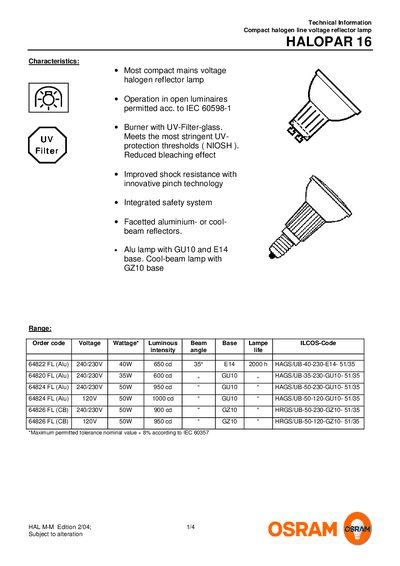

This technical information sheet provides detailed specifications for the OSRAM HALOPAR 16 compact halogen line‑voltage reflector lamp. It covers electrical characteristics, light output, geometry, and temperature limits for various base types.
Key sections include Characteristics, Light data, Geometry, Temperature behaviour, Operating conditions, Safety information and Environmental sensitivity, allowing designers and specifiers to select the appropriate lamp version for their luminaires.
| Voltage | 240/230V |
|---|---|
| Wattage | 40W |
| Luminous intensity | 650 cd |
| Beam angle | 35° |
| Base type | E14 |
| Rated life | 2000 h |
| Order code (40W E14) | HAGS/UB-40-230-E14-51/35 |
| Colour temperature (ALU) | 2800 K ±100 |
| Colour temperature (CB) | 2900 K ±100 |
| Maximum permitted temperature | 370°C* |
| Operating temperature (ALU GU10 50W) | 320°C |
The lamp is rated for a life of 2000 hours.
The aluminium‑coated version has a colour temperature of 2800 K ± 100, while the cool‑beam version is 2900 K ± 100.
