QT8 1x70 and QT8 2x70 are two electronic ballasts that can be used for 26mm fluorescent lamps. These two electronic ballasts have a service life of 30,000 hours, a failure rate of 10%, and a maximum temperature of 70°C. They can reliably ignite the lamp in a temperature range of -15°C to +50°C. The lamps can be started within two seconds and are suitable for PC I type luminaires. These two electronic ballasts have CELMA energy classification EEI=A3 and automatically shut down when the lamp fails and automatically restart after the lamp is replaced.

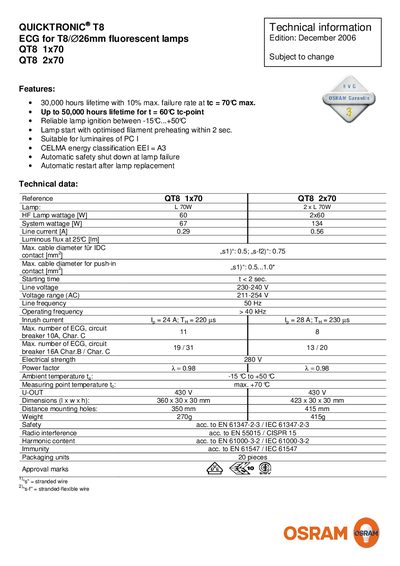

The QUICKTRONIC® T8 ECG is designed for T8/@26 mm fluorescent lamps (QT8 1x70 and QT8 2x70). It offers up to 50,000 hours lamp lifetime, reliable ignition between –15 °C and +50 °C, and automatic safety shutdown on lamp failure.
Technical data include line voltage 230‑240 V, system wattage up to 134 W, power factor 0.98, and dimensions of 360 × 30 × 30 mm. Wiring details, cable length limits, and safety approvals (EN 61347‑2‑3, EN 55015, etc.) are also provided.
| Lamp lifetime | Up to 50,000 hours |
|---|---|
| HF Lamp wattage | 60 W (1x) / 2 × 60 W (2x) |
| System wattage | 67 W (1x) / 134 W (2x) |
| Line current | 0.29 A (1x) / 0.56 A (2x) |
| Line voltage | 230‑240 V |
| Voltage range (AC) | 211‑254 V |
| Line frequency | 50 Hz |
| Operating frequency | > 40 kHz |
| Inrush current | 24 A |
| Power factor | 0.98 |
| Dimensions (L×W×H) | 360 × 30 × 30 mm |
| Weight | 270 g |
The QUICKTRONIC T8 provides up to 50,000 hours of lamp lifetime.
It operates on a line voltage of 230‑240 V.
The power factor is 0.98.
The unit measures 360 mm × 30 mm × 30 mm (L×W×H).
