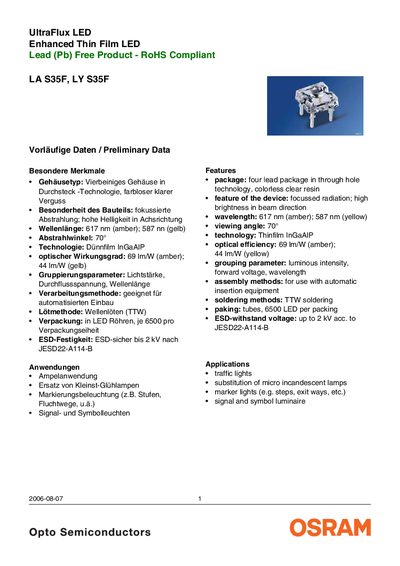

LA S35F, LY S35F UltraFlux LED Enhanced Thin Film LED Lead (Pb) Free Product - RoHS Compliant Preliminary Data
The OSRAM LA S35F and LY S35F are four‑lead thin‑film LEDs with focused radiation and high brightness in the beam direction. They are offered in amber (617 nm) and yellow (587 nm) versions and are RoHS‑compliant.
The document provides ordering information, electrical ratings, optical characteristics, and handling guidelines for automated insertion equipment.
| Wavelength (amber) | 617 nm |
|---|---|
| Wavelength (yellow) | 587 nm |
| Viewing angle | 70° |
| Optical efficiency (amber) | 69 Im/W |
| Optical efficiency (yellow) | 44 Im/W |
| Forward current (25 °C) | 70 mA |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Junction temperature max | +125 °C |
The amber version emits at 617 nm.
The LEDs have a viewing angle of 70°.
