C8051F000/1/2/5/6/7 and C8051F010/1/2/5/6/7 are a family of mixed-signal 32KB ISP FLASH MCU products. These products feature 12-bit and 10-bit SAR ADCs with programmable throughput of up to 100ksps. Additionally, they include two 12-bit DACs and two analog comparators. The products also offer various digital and analog peripherals such as a temperature sensor, voltage reference, and VDD monitor. Furthermore, the products incorporate on-chip JTAG debug and boundary scan capabilities, a high-speed 8051 microcontroller core, and ample internal memory.

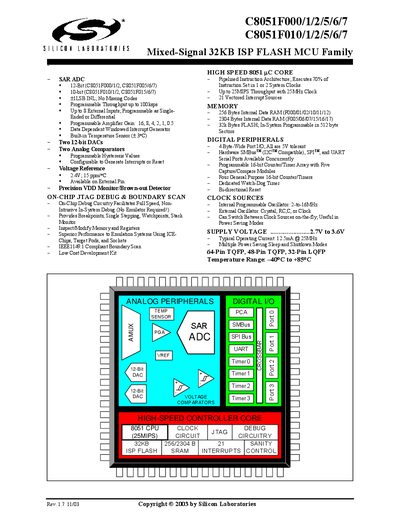

The manual describes the C8051F000 family of mixed‑signal System‑on‑Chip MCUs, including the 12‑bit and 10‑bit ADC variants, programmable gain amplifiers, DACs, comparators, voltage reference, and an 8051‑compatible core with up to 32 kB flash. It covers memory organization, pin‑out packages (64‑pin TQFP, 48‑pin TQFP, 32‑pin LQFP), power‑saving modes, and the full set of digital peripherals such as timers, UART, SPI, and SMBus/I²C.
The document also details on‑chip JTAG debug and IEEE 1149.1 boundary‑scan support, flash programming, reset sources, and development kits that include IDE, JTAG‑to‑RS‑232 translator, and prototyping boards. Contact information and legal notices are provided at the end.
| Typical Operating Current | 12.5 mA @ 25 MHz |
|---|---|
| Temperature Range | ‑40 °C to +85 °C |
| Flash Memory Size | 32 kB |
| Maximum Clock Frequency | 25 MHz (up to 25 MIPS) |
| Number of Interrupt Sources | 21 |
There are 21 vectored interrupt sources.
Typical operating current is 12.5 mA at 25 MHz.
