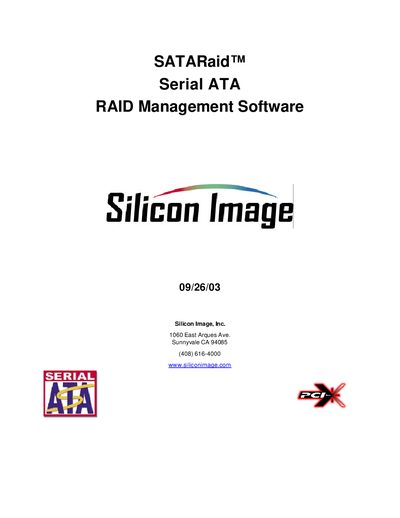

Silicon Image SATARaid Serial ATA RAID Management Software User Manual

SATARaid™ Serial ATA RAID Management Software is a software product from Silicon Image, Inc. for managing Serial ATA RAID arrays.

Brand: Silicon
Document type: User Manual
Language: English
Pages: 65
File format: PDF
File size: 7 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: BB14D98247567F644C002C22B0844A5E
PDF: Silicon Image SATARaid Serial ATA RAID Management Software User Manual PDF

About this manual

This manual introduces SATARaid, a software package that adds RAID 0, RAID 1 and RAID 10 functionality to Silicon Image Serial ATA host controllers. It explains the benefits of RAID, the supported configurations, and the overall workflow for creating and maintaining RAID sets.

The guide walks users through driver installation, Java runtime setup, GUI installation, and detailed procedures for creating, deleting, and rebuilding RAID sets, including spare drive management. It also covers partition allocation for various Windows operating systems and provides troubleshooting tips.

What's inside

Welcome
Features
Introduction to RAID
Driver Installation
Java Runtime Installation
GUI Installation
Creating and Deleting RAID Sets
RAID Set Management

Specifications

Supported RAID levels	RAID 0, RAID 1, RAID 10
Maximum SATA devices	4
Supported transfer mode	UDMA up to 150 MB/s
Supported operating systems	Windows XP, 2000, 98, NT
Hot spare support	Yes

Frequently asked questions

Can SATARaid manage multiple sized hard drives in a RAID set?

Yes, SATARaid accommodates multiple size HDDs within a RAID set.
