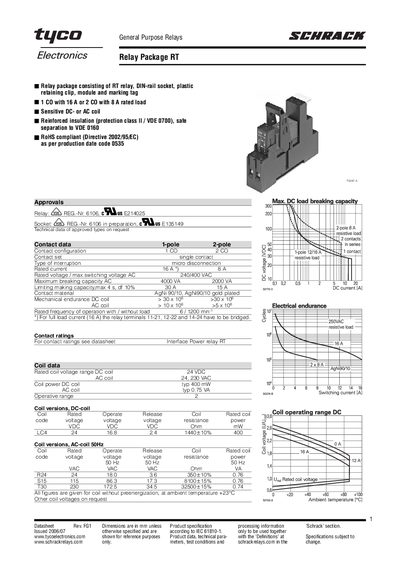

RT relay package consisting of RT relay, DIN-rail socket, plastic retaining clip, module and marking tag. 1 CO with 16 A or 2 CO with 8 A rated load.
The Relay Package RT from Schrack includes a relay, DIN‑rail socket, retaining clip, module and marking tag. It is offered in single‑pole (16 A) and double‑pole (8 A) configurations with both DC and AC coil options.
The document provides detailed electrical ratings, coil data, mechanical endurance, insulation properties, dimensions and part numbers for each variant, as well as compliance information such as RoHS and IP20 protection.
| Rated current | 16 A (1‑pole) or 8 A (2‑pole) |
|---|---|
| Rated voltage / max switching voltage | AC 240/400 VAC |
| Contact material | AgNi 90/10, gold plated |
| DC coil voltage | 24 VDC |
| AC coil voltages | 24 VAC, 115 VAC, 230 VAC |
| Degree of protection | IP20 (DIN 40050) |
| RoHS compliance | Directive 2002/95/EC |
The relay can handle 16 A for a single‑pole configuration or 8 A for a two‑pole configuration.
DC coil voltage is 24 VDC, and AC coil voltages are offered at 24 VAC, 115 VAC, and 230 VAC.
Yes, it complies with Directive 2002/95/EC as indicated by the product date code 0535.
The relay has an IP20 protection rating according to DIN 40050.
