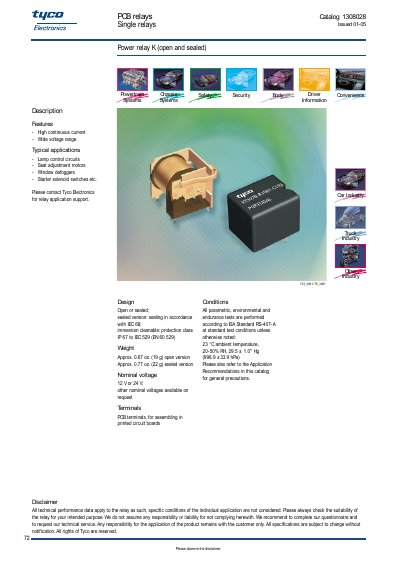

The document describes the features and characteristics of PCB relays, including high continuous current, wide voltage range, etc. Typical applications include lamp control circuits, seat adjustment motors, window defoggers, etc. The relays are available in open or sealed design, with the sealed version conforming to IEC 68 standard and providing IP 67 protection class. The weight is approximately 0.67 oz. (19 g) for the open version and 0.77 oz. (22 g) for the sealed version. The nominal voltage is 12V or 24V, with other nominal voltages available on request. The relays use PCB terminals for assembling in printed circuit boards. The disclaimer states that the technical performance data apply to the relay itself and do not consider specific conditions of individual applications. Always check the suitability of the relay for your intended purpose.
The Power Relay K is a PCB-mounted relay offered in open and sealed versions for automotive applications such as lamp control circuits, seat‑adjustment motors, window defoggers, and starter solenoid switches. Both versions meet IEC 68 standards, with the sealed version rated to IP67 for immersion cleaning.
Key specifications include nominal voltages of 12 V or 24 V, a coil power consumption of 1.6 W, and contact ratings up to 30 A. Mechanical data cover weight, dimensions, and environmental test limits, while ordering information lists part numbers for each voltage and configuration.
| Nominal voltage | 12 V or 24 V |
|---|---|
| Coil power consumption | 1.6 W |
| Weight (open version) | 0.77 oz (22 g) |
Typical applications include lamp control circuits, seat‑adjustment motors, window defoggers, and starter solenoid switches.
The relay is offered with nominal voltages of 12 V or 24 V, with other voltages available on request.
The unsuppressed coil consumes 1.6 W at its nominal voltage.
