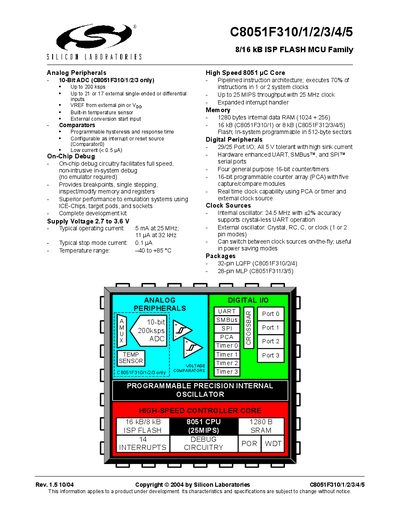

8/16 kB ISP FLASH MCU Family C8051F310/1/2/3/4/5 is a high-performance MCU developed by Silicon Laboratories. Its features include 10-bit ADC, comparators, on-chip debug circuit, high clock speed, and large memory.
The C8051F310/1/2/3/4/5 family is a 8051‑compatible microcontroller series featuring a high‑speed CIP‑51 core, on‑chip debug circuitry, and a range of analog and digital peripherals. It supports 2.7 V to 3.6 V supply voltage and includes up to 16 kB of flash memory with in‑system programming capability.
The handbook covers system architecture, memory organization, analog peripherals such as a 10‑bit ADC (up to 200 ksps), comparators, digital interfaces (UART, SMBus, SPI), timer blocks, power‑management modes, package pinouts, and detailed procedures for flash programming, reset handling, and peripheral configuration.
| Supply Voltage | 2.7 V to 3.6 V |
|---|---|
| Typical Operating Current | 5 mA at 25 MHz; 11 µA at 32 kHz |
| Flash Memory Size | 16 kB (C8051F310/1) or 8 kB (C8051F312/3/4/5) |
| Internal Data RAM | 1280 bytes (1024 + 256) |
| ADC Resolution | 10‑bit |
| Maximum ADC Sampling Rate | 200 ksps |
| Operating Temperature Range | -40 °C to +85 °C (power‑saving modes) |
| Package Types | 32‑pin LQFP (C8051F310/2/4) and 28‑pin MLP (C8051F311/3/5) |
The devices operate from 2.7 V to 3.6 V.
Each device provides 1280 bytes of internal data RAM, split as 1024 bytes plus 256 bytes.
The ADC can sample at up to 200 ksps.
The family is available in a 32‑pin LQFP package for C8051F310/2/4 and a 28‑pin MLP package for C8051F311/3/5.
