This document describes a general purpose relay accessory called Miniature Relay PT 1, which features easy replacement, no reduction in protection class or creepage/clearance with plastic retainer, plug-in indicator and protection modules, and a retainer clip with ejection function for relays of specific heights.

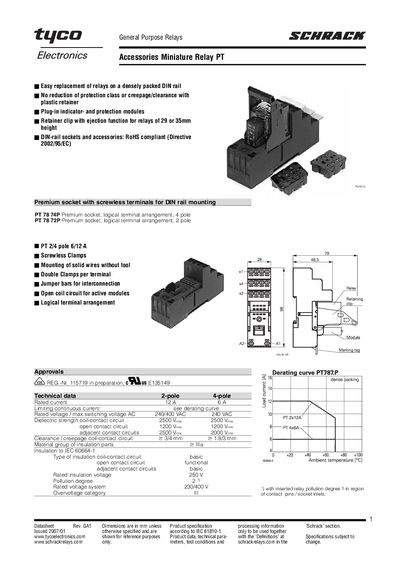

The Tyco Miniature Relay PT accessories datasheet provides detailed technical specifications for a range of PT sockets, retaining clips, marking tags, LED and protection modules, and related components. It includes information on electrical ratings, mechanical dimensions, mounting options, and compliance with RoHS and IEC standards.
The document lists part numbers, packaging details, and handling guidelines such as insertion cycles, force limits, and ambient temperature ranges, helping designers and technicians select the appropriate accessories for dense DIN‑rail installations.
| Rated current (2‑pole / 4‑pole) | 12 A / 6 A |
|---|---|
| Rated voltage / max. switching voltage | AC 240/400 VAC |
| Dielectric strength (coil‑contact circuit) | 2500 Vims |
| Open contact circuit voltage | 1200 Vims |
| Clearance / creepage (coil‑contact) | 3/4 mm = 1.8/3 mm |
| Degree of protection | IP20 |
| Terminal type | Screwless |
| Insertion cycles | A (10) |
| Max insertion force | 100 N |
| Weight (typical) | 44 g – 60 g |
| Packaging unit | 10 pcs |
The PT accessories have a degree of protection of IP20.
Yes, they comply with the RoHS Directive 2002/95/EC.
The 2‑pole PT socket is rated for 12 A.
