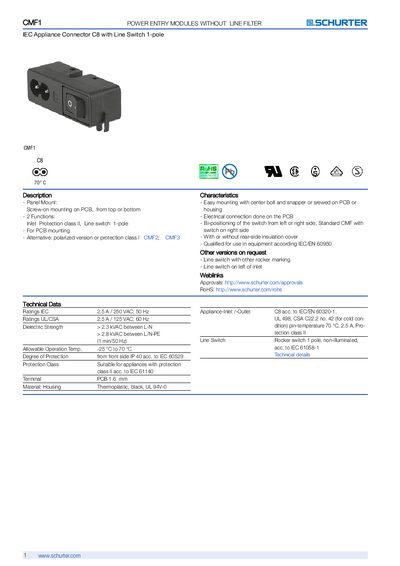

SCHURTER CMF1 IEC Appliance Connector C8 1‑Pole Line Switch Handbook
The CMF1 is a power entry module without line filter, designed for panel‑mount or PCB mounting. It features a 1‑pole rocker line switch and is available in standard and polarized versions, with optional rear‑side insulation cover.
Technical data include IEC and UL/CSA current‑voltage ratings, dielectric strength, operating temperature range, IP40 protection, and material details. Dimensional drawings and mounting diagrams are provided for flexible installation.
SCHURTER CMF1 specifications
| IEC Rating | 2.5 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 2.5 A / 125 VAC, 60 Hz |
| Dielectric Strength (L‑N) | 2.3 kVAC (1 min/50 Hz) |
| Dielectric Strength (L‑N‑PE) | 2.8 kVAC (1 min/50 Hz) |
| Operating Temperature | -25 °C to 70 °C |
| IP Rating | IP40 |
| Terminal PCB Thickness | 1.6 mm |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Connector Type | C8 IEC/EN 60320‑1, UL 498, CSA 22.2‑42 |
| Rocker Switch | 1‑pole, non‑illuminated (IEC 61058‑1) |
| Length | 153.3 mm |
Source: SCHURTER CMF1 IEC Appliance Connector C8 1‑Pole Line Switch Handbook
All SCHURTER CMF1 documents by type
Questions answered in these manuals
What are the IEC current and voltage ratings for the CMF1 connector?
The IEC rating is 2.5 A at 250 VAC, 50 Hz.
From: SCHURTER CMF1 IEC Appliance Connector C8 1‑Pole Line Switch Handbook
What temperature range can the CMF1 operate in?
It can operate from –25 °C up to 70 °C.
From: SCHURTER CMF1 IEC Appliance Connector C8 1‑Pole Line Switch Handbook
What is the rated voltage of the CMF power entry modules?
The modules are rated for 250 VAC.
From: Schurter CMF1, CMF2, CMF3 Power Entry Modules Handbook
What ambient temperature range can the modules operate in?
They can operate from –25 °C up to +70 °C.
From: Schurter CMF1, CMF2, CMF3 Power Entry Modules Handbook
