This document introduces the features and characteristics of a motherboard named AMD 890FX Deluxe5. The motherboard supports AMD's Socket AM3+ and Socket AM3 processors, and features an 8-phase power design for CPU and support for CPUs with up to 140W. It also supports dual-channel DDR3 memory technology with a maximum capacity of 32GB. Additionally, the motherboard supports ATI CrossFireX technology, has multiple PCI Express slots and SATA3 ports, and is equipped with high-fidelity audio and premium Blu-ray audio effects.

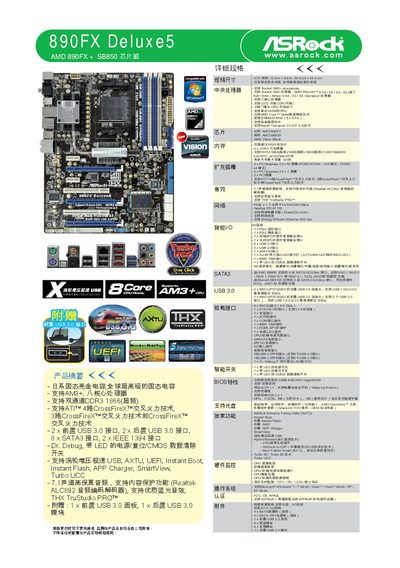

This manual covers the ASRock 890FX Deluxe5 motherboard, detailing its hardware specifications such as the AMD 890FX + SB850 chipset, support for AM3+ eight‑core CPUs, four DDR3 memory slots, multiple PCIe slots, and extensive I/O including USB 3.0, SATA3, and HDMI. It also describes the included utilities like the ASRock Extreme Tuning Utility (AXTU), SmartView, and various CyberLink software bundles.
Installation instructions guide users through connecting the front‑panel USB 3.0 module, mounting drives, and configuring BIOS/UEFI settings. Additional sections explain advanced features such as Turbo UCC automatic core unlocking, Dr. Debug LEDs, and audio/video capabilities with the Realtek ALC892 codec and THX TruStudio PRO. This manual is written in Chinese.
| CPU Socket | Socket AM3+ |
|---|---|
| Supported CPUs | AMD Phenom II X6/X4/X3/X2, Athlon II, Sempron |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory | 32 GB |
| SATA3 Ports | 8 |
| Audio Codec | Realtek ALC892 |
| Network Controller | Realtek RTL8111E Gigabit Ethernet |
It uses the Realtek ALC892 audio codec for 7.1‑channel high‑fidelity sound.
Yes, it is the first ASRock board to support AM3+ eight‑core CPUs.
