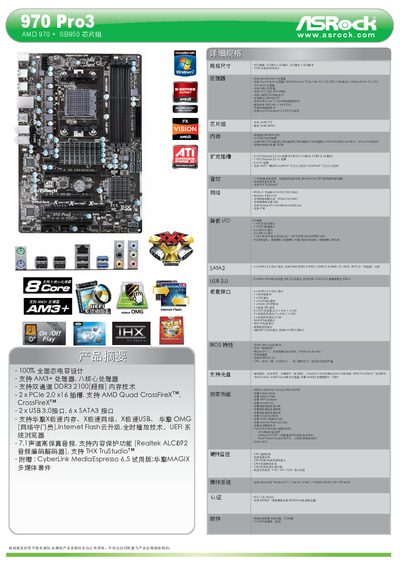

970 Pro3 On /Off Play Trial is a ATX-sized motherboard based on AMD 970 + SB950 chipset. It supports Socket AM3+ processors and DDR3 2100(Overclock)/1866(Overclock)/1800(Overclock)/1600(Overclock)/1333/1066/800 non-ECC, un-buffered memory. It supports AMD TM 4-way CrossFireX TM and CrossFireX TM technology. It supports 7.1-channel high fidelity audio, supports high-quality Blu-ray audio, supports THX TruStudio TM, supports Wake-On-LAN, supports network cable detection, supports Energy Efficient Ethernet 802.3az, and supports PXE.
The ASRock 970 Pro3 motherboard supports AMD AM3+ and AM3 processors, featuring an AMD 970 northbridge and AMD SB850 southbridge. It offers four DDR3 memory slots with a maximum capacity of 32 GB, six SATA3 ports, and two USB 3.0 connectors.
The board includes a Realtek ALC892 7.1‑channel audio codec, Gigabit Ethernet with Wake‑On‑LAN, and expansion slots comprising two PCIe 2.0 ×16 slots and one PCIe 2.0 ×1 slot. Additional features such as UEFI BIOS, cloud firmware updates, and bundled multimedia software are also described. This manual is written in Chinese.
| Memory Slots | 4 x DDR3 |
|---|---|
| SATA Ports | 6 x SATA3 (6 Gb/s) |
| USB 3.0 Ports | 2 |
| Audio Codec | Realtek ALC892, 7.1‑channel |
The board provides six SATA3 ports.
Yes, it includes two USB 3.0 connectors.
It uses a Realtek ALC892 codec with 7.1‑channel high‑fidelity audio.
