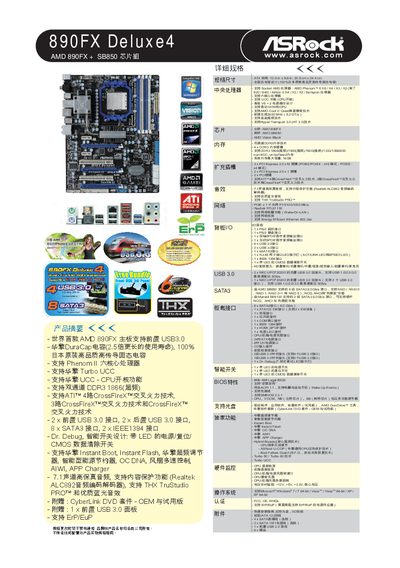

The AMD 890FX Deluxe4 motherboard by ASRock features the AMD 890FX + SB850 chipset and offers a range of advanced features and functions. This motherboard supports front USB3.0 ports, utilizes ASRock's DuraCap capacitors, supports Phenom II six-core processors, supports ASRock Turbo UCC and UCC functions, supports dual-channel DDR3 1866 overclocked memory, supports ATI 4-way CrossFireX technology, and provides a variety of interfaces and features. Additionally, the motherboard supports ASRock's exclusive features such as Instant Boot, Instant Flash, as well as high-fidelity audio and premium Blu-ray audio.
This manual covers the key specifications of the ASRock 890FX Deluxe4 motherboard, including its AMD 890FX + SB850 chipset, ATX form factor, AM3 CPU socket, and support for up to 16 GB DDR3 memory. It also details the board's connectivity options such as USB 3.0, SATA III, PCI Express slots, and audio features like Realtek ALC892 and THX TruStudio Pro.
Installation guidance, BIOS features, power‑saving functions, and bundled software (CyberLink utilities) are described, along with troubleshooting tips such as the Dr Debug LED indicators and fan control options. This manual is written in Chinese.
| Chipset | AMD 890FX + SB850 |
|---|---|
| Form factor | ATX |
| CPU socket | AM3 |
| Memory slots | 4 x DDR3 |
| Maximum memory | 16 GB DDR3 |
| USB 3.0 ports | 2 front, 2 rear |
| SATA3 ports | 8 |
| PCI Express x16 slots | 1 (PCI Express 2.0 x16) |
| Audio codec | Realtek ALC892 |
It provides two front‑panel USB 3.0 ports and two rear‑panel USB 3.0 ports.
The board supports up to 16 GB of DDR3 memory.
It uses the Realtek ALC892 audio codec.
