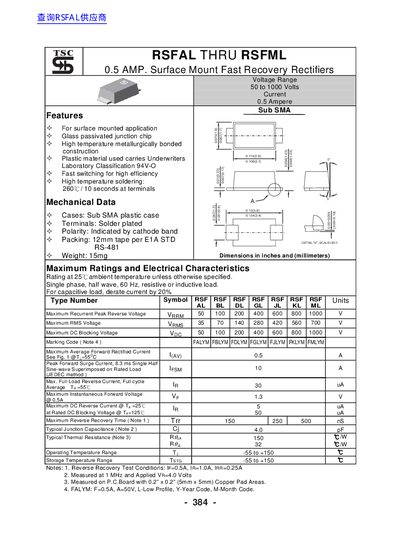

This data sheet lists the characteristics of RSFAL THRU RSFML 0.5 AMP. Surface Mount Fast Recovery Rectifiers, including voltage range, current, functional characteristics, outer dimensions, maximum rated values and electrical characteristics.
The document details the RSFAL through RSFML series of 0.5 Ampere Surface Mount Fast Recovery Rectifiers. These components are designed for surface-mounted applications and feature a glass passivated junction chip with high-temperature metallurgically bonded construction. The plastic material used carries an Underwriters Laboratory Classification of 94V-0.
| Maximum Average Forward Rectified Current | 0.5 A |
|---|---|
| Peak Forward Surge Current | 10 A |
| Maximum Reverse Recovery Time | 150 to 500 nS |
The operating temperature range is -55 to +150 ℃.
You must derate the current by 20% for capacitive loads.
