This is a P4SMA series surface mount transient voltage suppressor with a rated voltage of 6.8 to 200 volts and a maximum power of 400 watts.

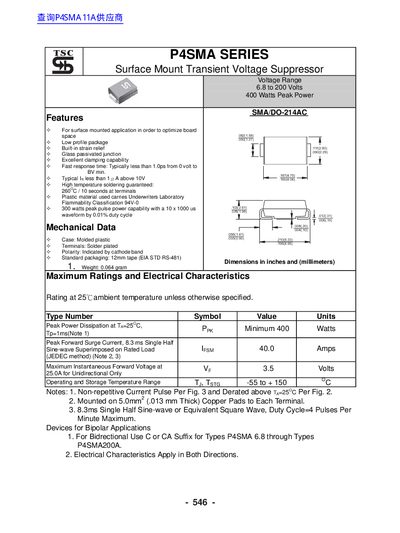

The document provides technical specifications for the TSC P4SMA Series Surface Mount Transient Voltage Suppressor. Key features include a low profile package with built-in strain relief, glass passivated junctions, and excellent clamping capability. The devices are designed for surface-mounted applications in environments requiring protection against transient voltage surges.
| Voltage Range | 6.8 to 200 Volts |
|---|---|
| Peak Power Dissipation | 400 Watts |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SMA/DO-214AC |
The device has a minimum of 400 watts peak power capability.
High temperature soldering is guaranteed for 260°C for 10 seconds at the terminals.
