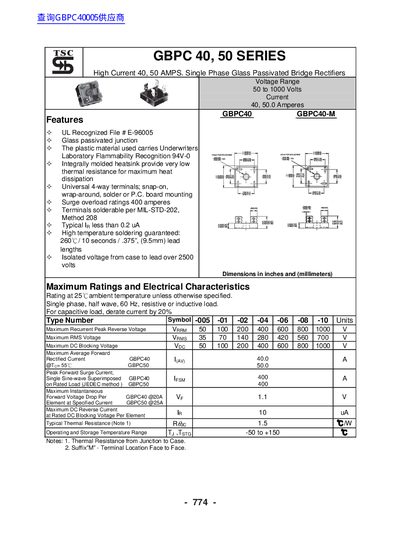

TSC GBPC 40/50 Series High Current Bridge Rectifier Datasheet

This document is about GBPC 40, 50 SERIES's technical data, introduces its characteristics and features

Brand: TSC
Category: RECTIFIER
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 94 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: D61F0580F13B7339826C8D5B90FE6466
PDF: TSC GBPC 40/50 Series High Current Bridge Rectifier Datasheet PDF

About this manual

This document provides technical specifications for the TSC GBPC 40 and 50 Series High Current Single Phase Glass Passivated Bridge Rectifiers. The devices are designed for voltage ranges from 50 to 1000 Volts with current ratings of 40 or 50 Amperes, featuring UL recognized glass passivated junctions.

What's inside

Features
Maximum Ratings and Electrical Characteristics
Ratings and Characteristic Curves
Thermal Resistance
Operating Temperature Range

Specifications

Voltage Range	50 to 1000 Volts
Current Rating (GBPC40)	40.0 Amperes
Current Rating (GBPC50)	50.0 Amperes
Peak Forward Surge Current	400 Amperes
Operating Temperature Range	-50 to +150 C

Frequently asked questions

What is the maximum average forward rectified current for the GBPC40 and GBPC50 models?

The maximum average forward rectified current is 40.0 Amperes for the GBPC40 model and 50.0 Amperes for the GBPC50 model.

What is the peak forward surge current rating for these bridge rectifiers?

The peak forward surge current, single sine-wave superimposed on rated load, is 400 Amperes.

What is the maximum thermal resistance from junction to case?

The typical thermal resistance from junction to case is 1.5 degrees Celsius per Watt.
