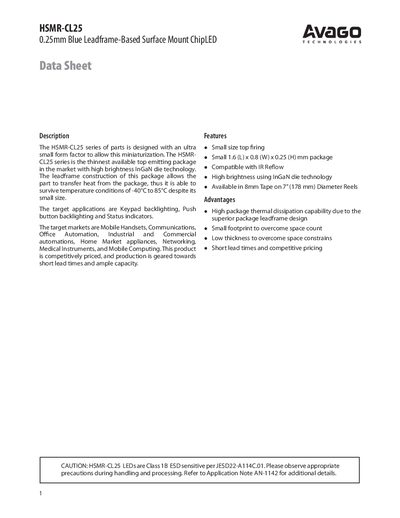

The HSMR-CL25 series is a top emitting LED with an ultra small form factor and high brightness InGaN die technology. It features a superior package leadframe design for high thermal dissipation capability, small footprint, and low thickness. It is suitable for keypad backlighting, push button backlighting, and status indicators.
The HSMR-CL25 series is a ultra‑small, top‑emitting surface‑mount LED designed for keypad, push‑button backlighting and status indicators across mobile handsets, industrial equipment and home appliances. Its leadframe construction provides good thermal dissipation, allowing operation from –40 °C to +85 °C.
The datasheet provides package dimensions (1.6 × 0.8 × 0.25 mm), electrical characteristics such as typical forward voltage of 2.85 V at 5 mA, power dissipation of 39 mW, and optical data including luminous intensity bins. Recommended reflow soldering profiles and tape dimensions are also included.
| Package size | 1.6 mm L × 0.8 mm W × 0.25 mm H |
|---|---|
| Power dissipation | 39 mW |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
The device can operate from –40 °C up to +85 °C.
The package measures 1.6 mm length, 0.8 mm width, and 0.25 mm height.
The LED can dissipate up to 39 mW.
