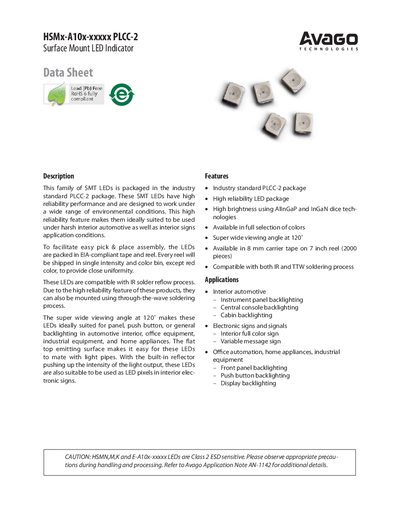

This is a SMT LED with industry standard PLCC-2 package, high reliability performance, suitable for a wide range of environmental conditions.
The HSMx-A10x-xxxxx family is a surface‑mount LED series packaged in a standard PLCC‑2 case. It offers high reliability for harsh interior automotive, office, industrial and home‑appliance applications, with a super wide 120° viewing angle and built‑in reflector for backlighting and signage.
The LEDs are supplied in moisture‑sensitive reels, compatible with IR reflow and through‑the‑wave soldering. The document lists package dimensions, electrical and optical characteristics, moisture‑sensitivity handling, and recommended soldering profiles.
| Viewing angle | 120° |
|---|---|
| Operating temperature range | –55°C to +100°C |
| DC forward current (typical) | 30 mA |
| Power dissipation | 63 mW |
| Reverse voltage | 5 V |
The LEDs can be mounted using both IR solder reflow and through‑the‑wave (TTW) soldering processes.
Store the unopened reels in a sealed moisture‑sensitive bag at less than 40 °C/90 %RH for up to 12 months; after opening, keep at <30 °C/60 %RH and use within 672 hours.
A typical profile uses a preheat of 150 °C, solder wave temperature of 245 °C, air knife temperature of 390 °C, and a total time of about 30 seconds.
