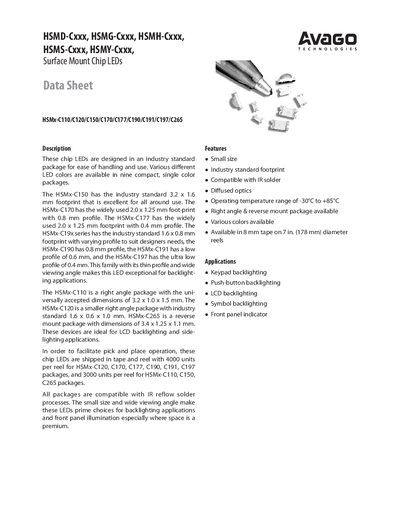

This document introduces the features and characteristics of a series of HSMx-C series LED products, including size, package, and available colors.
The document describes a family of surface‑mount chip LEDs offered by Avago Technologies. It lists the physical footprints, package styles (right‑angle, reverse‑mount), and the range of colors available. Shipping information, such as tape‑and‑reel quantities and compatibility with IR reflow soldering, is also included.
Technical sections cover absolute maximum ratings, electrical and optical characteristics, binning limits, and detailed package dimensions. The datasheet ends with handling, storage, and reflow soldering guidelines, plus a reference to an application note for SMT LED mounting.
| Package dimensions (HSMx‑C110) | 3.2 × 1.0 × 1.5 mm |
|---|---|
| Operating temperature range | -30 °C to +85 °C |
| Forward voltage (typical, 20 mA, HSMS‑C110) | 2.1 V |
| Luminous intensity (typical, HSMG‑C110) | 45 mcd |
| Units per reel (HSMx‑C120, C170, C177, C190, C191, C197) | 4 000 |
The LEDs can be stored from –40 °C to +85 °C.
Both right‑angle and reverse‑mount packages are offered in several size families.
