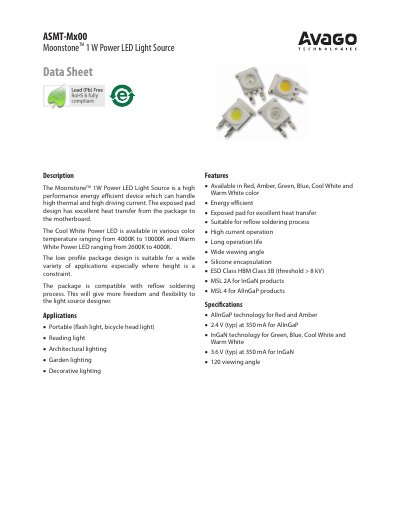

The MoonstoneTM 1W Power LED Light Source is a high performance energy efficient device which can handle high thermal and high driving current. The exposed pad design has excellent heat transfer from the package to the motherboard. The Cool White Power LED is available in various color temperature ranging from 4000K to 10000K and Warm White Power LED ranging from 2600K to 4000K. The low profile package design is suitable for a wide variety of applications especially where height is a constraint. The package is compatible with reflow soldering process. This will give more freedom and flexibility to the light source designer.
The Moonstone™ 1W Power LED Light Source is a high‑performance, energy‑efficient LED designed for portable lighting, reading lamps, architectural and decorative applications. It features an exposed pad for excellent heat transfer and is compatible with reflow soldering, allowing flexible PCB integration.
Key specifications include typical forward voltages of 2.4 V (AlInGaP) and 3.6 V (InGaN) at 350 mA, a 120° viewing angle, and power dissipation up to 1.4 W. The device is moisture‑sensitive (Level 2a for InGaN, MSL 4 for AlInGaP) and requires careful handling of its silicone encapsulation.
| Typical forward voltage (AlInGaP) | 2.4 V at 350 mA |
|---|---|
| Typical forward voltage (InGaN) | 3.6 V at 350 mA |
| Viewing angle | 120° |
| Power dissipation (AlInGaP) | 1050 mW |
| Power dissipation (InGaN) | 1400 mW |
| LED junction temperature (AlInGaP) | 125 °C |
| LED junction temperature (InGaN) | 110 °C |
| Operating ambient temperature range | -40 °C to +100 °C |
The typical forward voltage is 2.4 V at a forward current of 350 mA.
Yes, the package is compatible with the reflow soldering process.
It is Moisture Sensitive Level 2a for InGaN devices and MSL 4 for AlInGaP devices.
Do not press on the silicone or poke a sharp object onto it; handle the unit by the body only.
