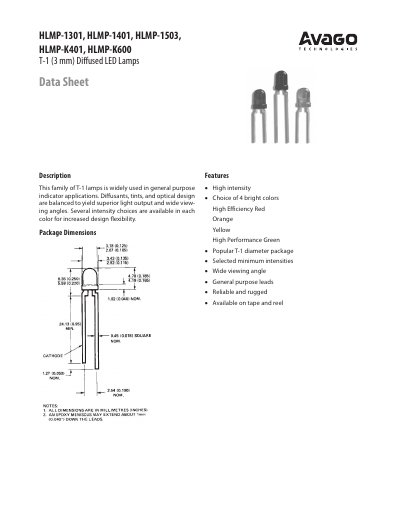

This data sheet provides specifications for the HLMP-1301, HLMP-1401, HLMP-1503, HLMP-K401, and HLMP-K600 T-1 (3 mm) diffused LED lamps.
The T‑1 series diffused LED lamps are 3 mm diameter devices intended for general‑purpose indicator applications. The family includes red, orange, yellow, green and emerald‑green color options, each offered with several intensity bins for design flexibility.
The document lists absolute maximum ratings, electrical characteristics, mechanical packaging options and recommended soldering procedures. It also defines part‑numbering, intensity bin limits and provides detailed wave‑soldering profiles to ensure reliable assembly.
