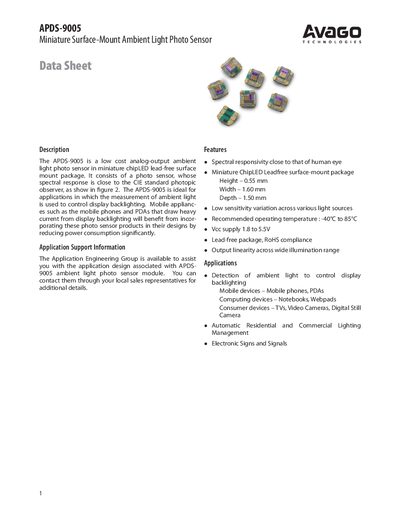

This data sheet introduces the features and characteristics of the APDS-9005 miniature surface-mount ambient light photo sensor, including spectral responsivity, external dimensions, operating temperature range, power supply voltage, and application scenarios.
The APDS-9005 ambient light photo sensor provides a linear analog output that matches the human eye's spectral response. It is intended for backlight control in mobile phones, PDAs, notebooks, TVs, video cameras and other consumer devices, as well as for lighting and signage applications.
The device operates from 1.8 V to 5.5 V, works over a temperature range of –40 °C to 85 °C, and offers a typical photo current of 40 µA at 1.8 V and 100 lux. Its package is a miniature ChipLED lead‑free surface‑mount type (0.55 mm × 1.60 mm × 1.50 mm) and is supplied in moisture‑proof tape‑and‑reel packaging.
| Supply voltage (Vcc) | 1.8 V to 5.5 V |
|---|---|
| Maximum dark current (3 V, 0 lux) | 300 nA |
| Peak sensitivity wavelength | 500 nm |
| Rise time | 5 ms |
| Fall time | 5 ms |
| Saturation voltage | 1.0 V |
It can be powered from 1.8 V up to 5.5 V.
The peak sensitivity occurs at approximately 500 nm.
