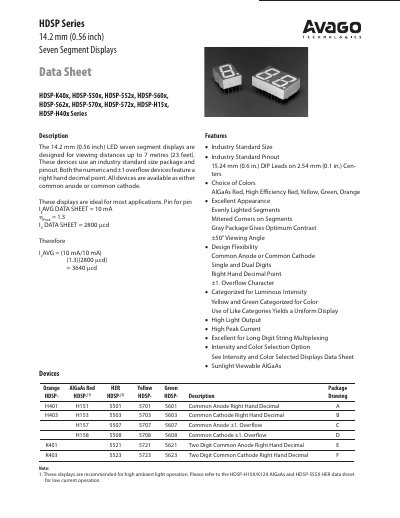

The document describes the features and characteristics of the HDSP series 14.2 mm (0.56 inch) seven segment displays. These displays are designed for viewing distances up to 7 meters (23 feet) and use an industry standard size package and pinout. They are available as both common anode and common cathode and are suitable for most applications.
The HDSP Series 14.2 mm (0.56 inch) seven‑segment LED displays are designed for viewing distances up to 7 metres (23 feet) and are offered in both common‑anode and common‑cathode configurations. The datasheet lists a wide range of colors (AlGaAs Red, Orange, Yellow, Green) and includes features such as a right‑hand decimal point and ±1 overflow character.
Technical details cover mechanical dimensions, electrical/optical characteristics, absolute maximum ratings, and recommended cleaning and soldering procedures. Bin and intensity categories are defined for precise luminous output selection, and the document references related application notes for contrast enhancement and low‑current operation.
| Viewing distance | up to 7 metres (23 feet) |
|---|---|
| Package size | 14.2 mm (0.56 inch) |
| Typical forward voltage per segment | 2.0 V |
| Operating temperature range | -20 °C to +100 °C |
| Reverse voltage per segment | 3.0 V |
| Average power per segment | 96 mW |
The displays are designed for viewing distances up to 7 metres (23 feet).
Yes, all devices are available as either common anode or common cathode.
Ketone and chlorinated‑hydrocarbon solvents such as acetone, methyl ethyl ketone, methylene chloride, trichloroethylene, and carbon tetrachloride are not recommended.
