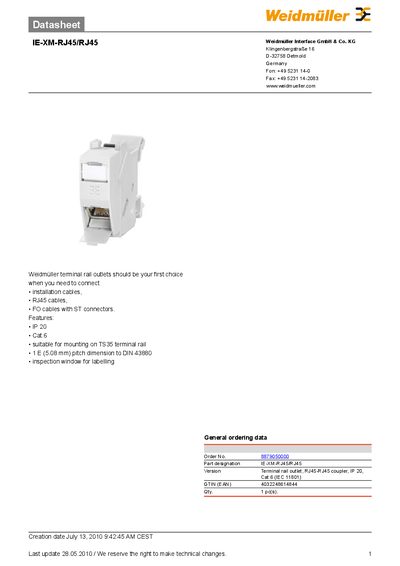

Weidmuller IE-XM-RJ45/RJ45 Datasheet
The IE-XM-RJ45/RJ45 is a terminal‑rail outlet that couples two RJ45 connectors. It is designed for mounting on TS35 terminal rails and supports installation, RJ45, and fiber‑optic cables with ST connectors.
Key features include an IP20 rating, Cat.6 compliance (IEC 11801), a PA 66 housing with UL 94 V‑0 rating, a light‑grey colour, an inspection window for labeling, and a 1E (5.08 mm) pitch dimension to DIN 43880. Technical data such as plugging cycles (up to 750), pitch, and material are listed in the datasheet.
Weidmuller IE-XM-RJ45 specifications
| Cable category | Cat.6 (IEC 11801) |
|---|---|
| Mounting type | TS35 terminal rail |
| Pitch dimension | 1E (5.08 mm) to DIN 43880 |
| Housing material | PA 66, UL 94 V‑0 |
| Colour | Light grey |
| Plugging cycles | Up to 750 cycles |
| Connection type | RJ45 (both sides) |
| Inspection window | Yes, for labeling |
All Weidmuller IE-XM-RJ45 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the order number for the IE‑XM‑RJ45/RJ45?
The order number is 8879050000.
Which cable category is supported by the IE‑XM‑RJ45/RJ45?
It supports Category 6 cables according to IEC 11801.
Which cable category does the IE-XM-RJ45/IDC-B support?
It complies with Category 6 according to IEC 11801.
How many plugging cycles can the connector withstand?
It is rated for up to 750 plugging cycles.
Which cable category does the IE-XM-RJ45/IDC support?
It supports Cat.6 cables according to IEC 11801.
How many plugging cycles is the IE-XM-RJ45/IDC rated for?
The device is rated for up to 750 plugging cycles.
