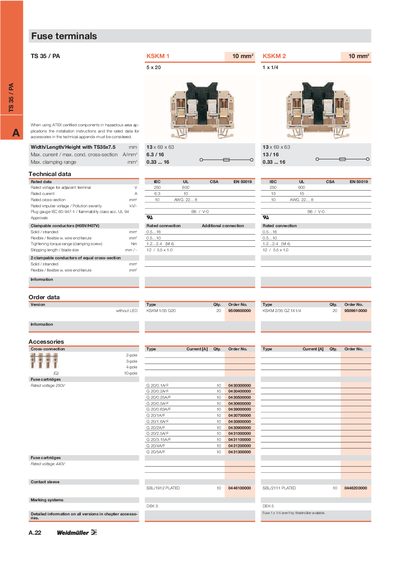

Weidmuller TS 35 PA Fuse Terminals Datasheet
The TS 35 PA series are fuse terminals designed for use with ATEX‑certified components in hazardous areas. Installation instructions and rated data for accessories are provided in the technical appendix.
The document lists rated voltage, current, clamping range, dimensions, tightening torque, and order numbers for various versions, as well as compatible fuse cartridges and contact sleeves.
Weidmuller TS 35 PA specifications
| Rated voltage (adjacent terminal) | 250 V / 600 V |
|---|---|
| Rated current | 63 A / 10 A / 13 A / 15 A |
| Max. current | 6.3 A / 13 A |
| Max. clamping range | 0.33 mm … 16 mm |
| Dimensions (W×L×H) | 13 mm × 69 mm × 63 mm |
| Tightening torque range | 1.2 – 2.4 Nm (M4) |
