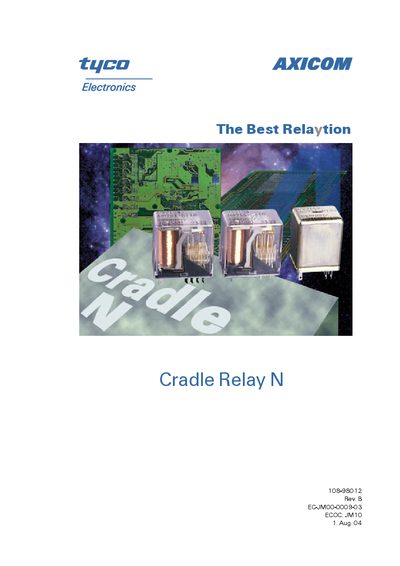

Cradle Relay N is a multi-purpose relay with high reliability, a wide range of contact arrangements and materials to meet specific applications.
The Cradle Relay N is a multi‑purpose relay offered by Tyco Electronics AXICOM. It is available in various contact configurations, including up to 5 A signal loads, and can be mounted by hand‑solder, plug‑in, or PCB methods. The relay family is used in measurement and control equipment, press controls with high safety requirements, and telecommunications applications.
The datasheet details contact ratings (up to 5 A, 250 Vde), coil operating voltages (1.5 V – 125 V), dimensions (approximately 10 × 6 mm board space), and European directive conformance (ELV and RoHS). It also includes load‑limit curves, coil power consumption, and material specifications for contacts and coils.
| Maximum contact current | 5 A |
|---|---|
| Coil operating voltage range | 1.5 V – 125 V |
| Dimensions (board space) | ≈ 10 × 6 mm |
The relay can handle signal loads up to 5 A, with individual contact sets rated for 2 A.
The coil can be operated from 1.5 V up to 125 V.
