This document mainly introduces the basic concept, features and usage methods of SOLARLOK photovoltaic interconnection system

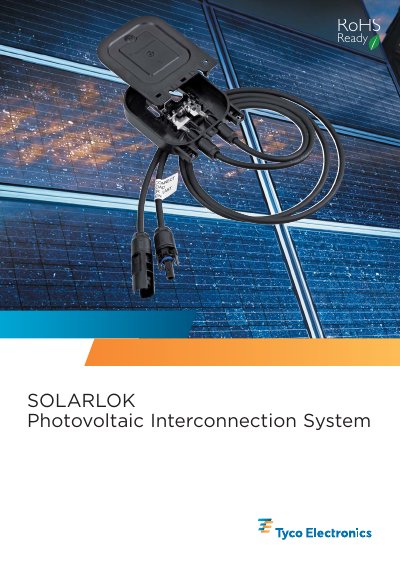

The SOLARLOK Photovoltaic Interconnection System catalog presents a range of junction boxes and related components for serial and parallel solar module connections. It includes large, medium, small, eco, slim and micro junction boxes, each with detailed dimensions, rated current, and optional mounting options.
All dimensions are given in millimetres and specifications are subject to change; customers are advised to consult Tyco Electronics for the latest data. The catalog also provides RoHS compliance information, part numbers, and global contact details for ordering literature or technical support.
| Operating Temperature | –40 °C to +125 °C |
|---|---|
| Voltage Rating | up to 1800 V DC |
| Dimensions (Large Junction Box) | W 150 mm × D 150 mm × H 25 mm |
The junction boxes operate from –40 °C up to +125 °C.
The system is rated for up to 1800 V DC.
Most part numbers are RoHS compliant unless specifically marked otherwise.
You can order flyers, catalogs and brochures by fax or contact your local Tyco Electronics subsidiary using the global contact list.
