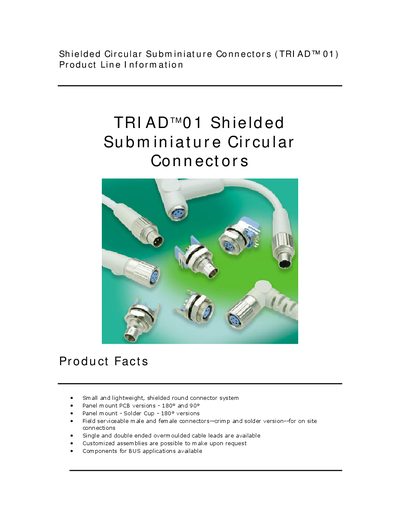

TRIAD™ 01 Series connectors are small, lightweight, shielded round connectors for medical and industrial applications. The system provides compact PCB versions, suitable for mounting on circuit boards, as well as versions with solder cups, suitable for field wire termination.
The TRIAD 01 is a small, lightweight, shielded subminiature circular connector system designed for medical, industrial, and BUS applications such as CAN or MODULAR. It offers panel‑mount versions with 180° and 90° orientations, solder‑cup terminations, and over‑moulded cable assemblies that meet IP65 (DIN 40050) protection.
Various accessories are available, including T‑adapters, terminator plugs, dust caps, and cable assemblies with different contact counts and lengths. The connectors are rated for up to 3 A per contact, operate from –40 °C to +85 °C, and can withstand test voltages of 500 VAC while maintaining low contact resistance.
| Shell Protection Class | IP65 (DIN 40050) |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Test Voltage | 500 VAC |
| Operating Voltage | 60 VAC |
| Contact Resistance | < 6 mΩ |
| Rated Current per Contact | 3 A |
| Mating Cycles | > 500 |
| Number of Contacts | 3 |
| Shell Material | CuZn |
| Plating | Tribor 4 µm |
The TRIAD 01 is rated IP65 according to DIN 40050.
It can operate from –40 °C up to +85 °C.
Panel‑mount PCB versions are offered in 180° and 90° orientations, as well as panel‑mount solder‑cup versions.
