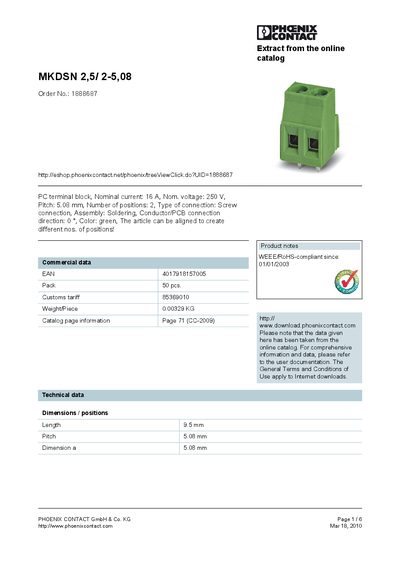

MKDSN 2,5/ 2-5,08 is a terminal block produced by PHOENIX CONTACT. The nominal current is 16 A, the nominal voltage is 250 V, the terminal pitch is 5.08 mm, the mounting method is soldering, the conductor/PCB connection direction is 0 °, and the color is green.
The MKDSN 2,5/2-5,08 is a 2‑position terminal block with a 5.08 mm pitch, designed for screw‑type connections and optional soldering assembly. It is rated for 16 A nominal current and 250 V nominal voltage, and complies with WEEE/RoHS regulations since 01/01/2003.
The document lists detailed technical specifications, including tightening torque (0.5 Nm – 0.6 Nm), rated surge voltage (4 kV), dimensions, and accessories such as insertion bridges and tools. Certification marks (CUL, UL, VDE‑PZI) and ordering information are also provided.
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Type of connection | Screw connection |
| Assembly | Soldering |
| Weight per piece | 0.00329 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 16 A.
It has two positions.
The pitch is 5.08 mm.
The tightening torque should be between 0.5 Nm and 0.6 Nm.
