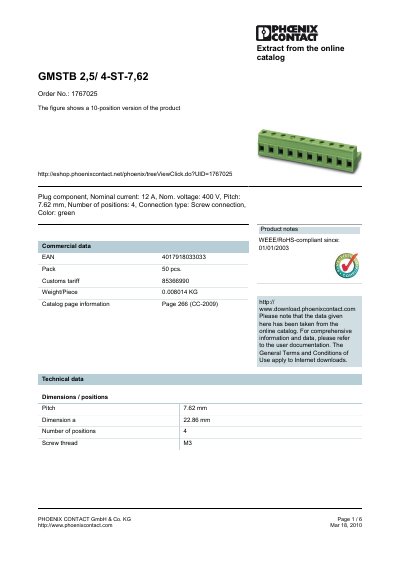

The GMSTB 2,5/ 4-ST-7,62 is a plug component manufactured by PHOENIX CONTACT. It has a rated current of 12 A, a rated voltage of 400 V, a pitch of 7.62 mm, 4 terminals and a screw connection. The color is green.
The GMSTB 2,5/4-ST-7,62 is a green‑colored plug component with four screw‑type terminals, a 7.62 mm pitch, and a nominal current rating of 12 A at 400 V. It is designed for use with conductor cross‑sections from 0.2 mm² up to 2.5 mm² and complies with RoHS and WEEE standards.
The sheet lists detailed technical data such as insulating material group I, rated surge voltage of 6 kV, and recommended tightening torque of 0.5–0.6 Nm. It also includes certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI), accessory part numbers, and a dimension drawing for installation reference.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Insulating material group | I |
| Rated surge voltage | 6 kV |
| Weight per piece | 0.008014 kg |
| Dimension a | 22.86 mm |
| Color | green |
The nominal current rating is 12 A.
The terminal pitch is 7.62 mm.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
