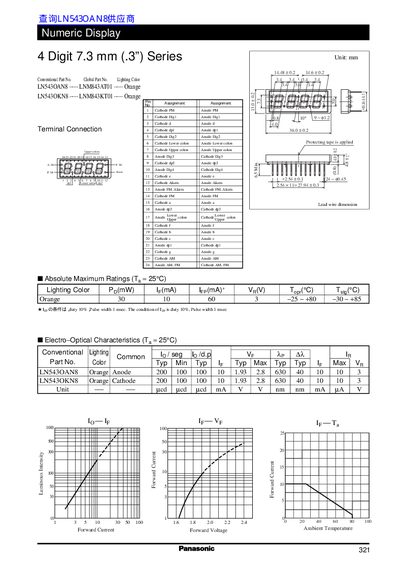

This document is a specification for LN543OAN8 numeric display, including dimensions, pin definition, voltage, current, etc.
The Panasonic 4 Digit 7.3 mm (.3”) Series is a numeric display module that provides four alphanumeric characters in a compact 7.3 mm height. It is available in orange lighting color and includes both anode and cathode configurations.
Key electrical data are listed, including forward voltage, forward current, and absolute maximum ratings. The document also provides part numbers for the different color and polarity options, as well as temperature operating limits.
| Display size | 7.3 mm |
|---|---|
| Typical forward current | 30 mA |
| Part number (Orange Anode) | LN5430AN8 |
| Part number (Orange Cathode) | LN5430KN8 |
The orange anode version is LN5430AN8 and the orange cathode version is LN5430KN8.
