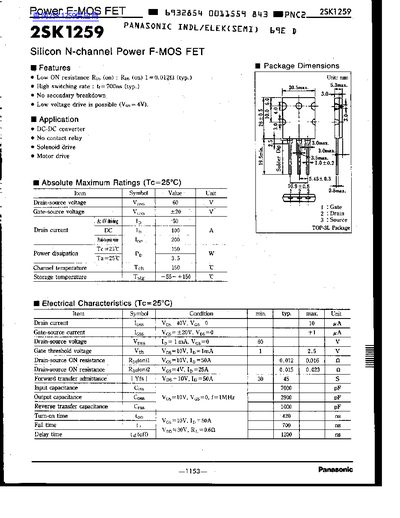

The Panasonic 2SK1259 is an N‑channel power F‑MOSFET intended for high‑current, low‑on‑resistance applications such as DC‑DC converters, motor drives, and solenoid control.
Key specifications include a 60 V drain‑source rating, typical on‑resistance of 0.012 Ω at VGS=10 V, continuous drain current up to 100 A, and a power dissipation of 3.5 W at 25 °C. Switching times are 420 ns turn‑on and 1.2 µs turn‑off, with input capacitance of 7 nF and output capacitance of 2.9 nF.
| Drain‑source voltage (VDS) | 60 V |
|---|---|
| Continuous drain current (ID) | 100 A |
| Turn‑on time (tON) | 420 ns |
| Turn‑off delay time (tOFF) | 1200 ns |
| Input capacitance (Ciss) | 7000 pF |
The maximum drain‑source voltage is 60 V.
The device can handle a continuous drain current of up to 100 A.
Turn‑on time is 420 ns and turn‑off delay time is 1200 ns.
