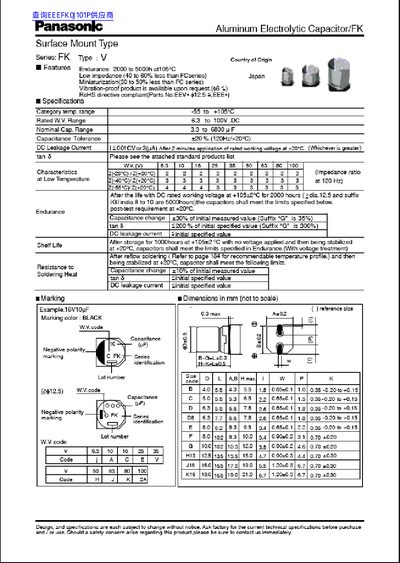

EEEFK0J101P Aluminum Electrolytic Capacitor
This document provides the electrical and mechanical specifications for Panasonic's FK series aluminum electrolytic capacitors. It lists capacitance values, voltage ratings, ripple current, impedance, tan δ, and endurance limits, together with part numbers for both RoHS‑compliant and non‑compliant versions.
Reflow temperature profiles for various package sizes are included, showing peak temperatures and time‑within‑temperature limits. The document also gives dimensional data (diameter, length, taping) and packaging quantities for each part number.
| Capacitance range | 4.7 µF to 1500 µF |
|---|---|
| Endurance | 2000 h to 5000 h at 105 °C |
The FK series capacitors are rated for 2000 to 5000 hours of operation at 105 °C.
Reflow peak temperatures are 240 °C (within 5 s) for 6 φ to 10 φ packages, and 230 °C (within 5 s) for other sizes.
Typical dimensions are given as diameter and length, for example 4 mm × 6.3 mm for the 4.7 µF part.
