TX-S is a small polarized relay produced by Panasonic. It has high sensitivity, 50mW nominal operating power (single side stable 1.5-12V) and is suitable for power saving.
The TX‑S series is a small polarized relay with high sensitivity and low power consumption, suitable for communications, security, home appliances, automotive, medical and measurement equipment. It offers a single‑side stable design with various coil voltage options and surface‑mount or through‑hole terminals.

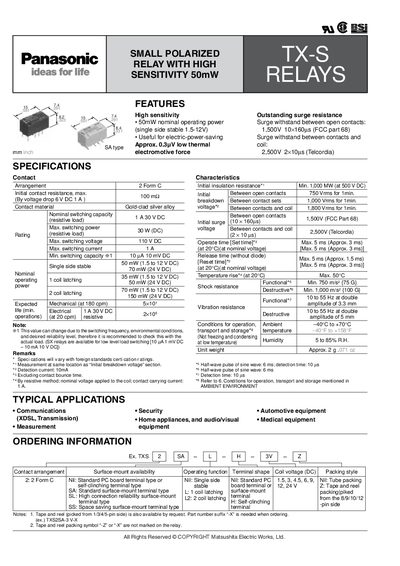

The document lists electrical and mechanical specifications, surge withstand ratings, environmental limits, and detailed ordering information, including part numbers for different terminal types and packaging options.
| Nominal operating power | 50 mW |
|---|---|
| Initial contact resistance (max) | 100 mΩ |
| Nominal switching capacity | 1 A 30 V DC |
| Surge withstand (open contacts) | 1,500 V 10×160 µs |
| Surge withstand (contacts‑to‑coil) | 2,500 V 2×10 µs |
| Ambient temperature range | -40 °C to +70 °C |
| Humidity range | 5 % to 85 % RH |
| Contact arrangement | 2 Form C |
The relay operates with a nominal power of 50 mW.
