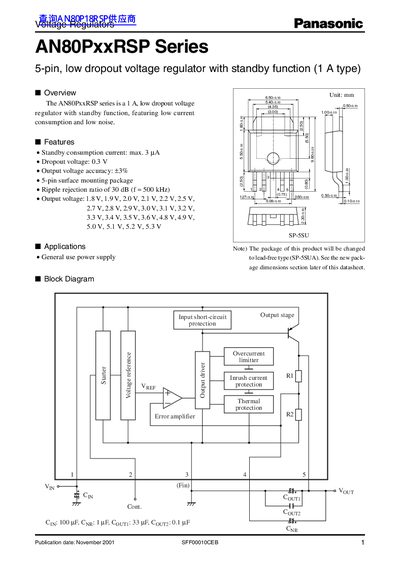

The AN80PxxRSP series is a 1 A, low dropout voltage regulator with standby function, featuring low current consumption and low noise.
The AN80PxxRSP Series is a 1 A low‑dropout voltage regulator with a standby function, designed for general‑purpose power‑supply applications. It provides a wide range of fixed output voltages from 1.8 V to 5.3 V with low dropout (0.3 V) and low noise performance.
Key features include a 5‑pin surface‑mount package, standby consumption as low as 3 µA, output voltage accuracy of ±3 %, and a ripple rejection ratio of 30 dB at 500 kHz. The device is not intended for automotive use and is supplied in a lead‑free package (SP‑SSUA) for compliance with RoHS.
| Standby consumption current | max. 3 µA |
|---|---|
| Dropout voltage | 0.3 V |
| Output voltage accuracy | ±3 % |
| Package type | 5‑pin surface mounting |
| Ripple rejection ratio | 30 dB at 500 kHz |
| Supply voltage rating | 14.4 V |
| Power dissipation | 255 mW |
| Operating temperature range | -30 °C to +85 °C |
The standby consumption current is specified as a maximum of 3 µA.
No, the IC is not suitable for automobile equipment use.
The dropout voltage is 0.3 V.
