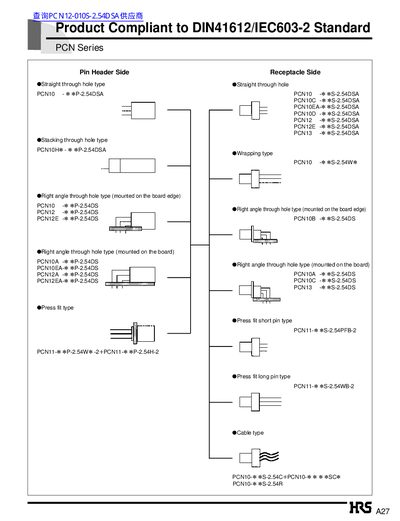

The PCN series is a straight-through connector that complies with DIN41612/IEC603-2 standard. The connector has 2 rows and 3 rows to choose from, with a pin count of 64 or 100, and wiring methods of straight-through, bending, press fit, stacking, and with wire.
The PCN Series from Hirose includes the PCN10, PCN12 and PCN13 families of pin‑header and receptacle connectors that meet DIN41612/IEC603‑2 standards. Various mounting styles are offered, such as straight‑through, right‑angle, wrapping, press‑fit and cable‑type, with stacking heights from 25 mm to 45 mm.
Technical data cover current rating (2 A), voltage rating (300 V AC), operating temperature (‑55 °C to +85 °C), insulation resistance (10 MΩ), contact resistance (≤20 mΩ) and durability tests, providing designers with the information needed for reliable integration in control equipment, measuring instruments and other industrial applications.
| Current rating | 2 A |
|---|---|
| Voltage rating | 300 V AC |
| Operating temperature range | -55 °C to +85 °C |
| Storage temperature range | -10 °C to +60 °C |
| Insulation resistance | 10 MΩ |
| Contact resistance | ≤20 mΩ |
The PCN connectors are rated for a continuous current of 2 A.
Contact options range from 10 to 144 contacts, including 10, 16, 20, 24, 28, 30, 32, 44, 48, 50, 64, 90, 96, 100, 128 and 144 contacts.
