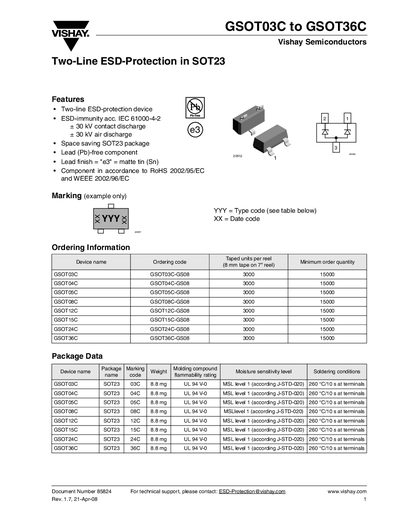

VISHAY SEMICONDUCTOR GSOT03C to GSOT36C Document Number 85824 Rev. 1.7 21-Apr-08 Vishay Semiconductors Two-Line ESD-Protection in SOT23 Manual

GSOT03C to GSOT36C is a two-line ESD protection device in SOT23 package. It meets RoHS 2002/95/EC and WEEE 2002/96/EC standards.

Brand: Vishay
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 13
File format: PDF
File size: 195 KB
Published: 09 May, 2012
Updated: 30 September, 2023
MD5 checksum: 322B5C726F8735640B0E67D572E3BF19
PDF: VISHAY SEMICONDUCTOR GSOT03C to GSOT36C Document Number 85824 Rev. 1.7 21-Apr-08 Vishay Semiconductors Two-Line ESD-Protection in SOT23 Manual PDF

About this manual

The GSOT03C‑GSOT36C family provides two‑line ESD‑protection in a compact SOT23 package. Devices meet IEC 61000‑4‑2 immunity with 30 kV contact and air discharge and comply with RoHS and WEEE directives.

Technical data include absolute maximum ratings, electrical characteristics for each part number, and ordering information. The document also contains Vishay’s environmental policy and legal disclaimer.

What's inside

Features
Ordering Information
Package Data
Absolute Maximum Ratings
Electrical Characteristics
BiAs Mode Operation
Environmental Policy
Legal Disclaimer

Specifications

ESD immunity	30 kV contact discharge, 30 kV air discharge
Package type	SOT23
Maximum current rating (Pin 1‑3 or Pin 2‑3)	20 A
Protection paths	2 lines
Reverse stand‑off voltage (GSOT03C)	3.3 V

Frequently asked questions

What is the ESD immunity level of the GSOT series?

The devices meet IEC 61000‑4‑2 immunity with 30 kV contact discharge and 30 kV air discharge.

How many signal lines can each GSOT device protect?

Each device can protect two signal lines.

What is the reverse stand‑off voltage for GSOT03C?

The reverse stand‑off voltage for GSOT03C is 3.3 V.

What package does the GSOT03C‑GSOT36C family use?

All devices are supplied in a space‑saving SOT23 package.
