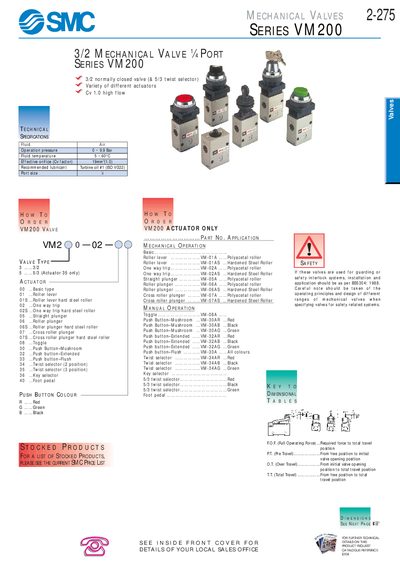

This document provides detailed information on the VM200 series valves, including product models, functions and parameters
The VM200 series includes 3/2 normally closed valves and 5/3 twist‑selector variants with a high‑flow Cv of 1.0. Technical data cover an operation pressure of 0‑9.9 Bar, fluid temperature range of 5‑60 °C, and recommended lubricant Turbine oil #1 (ISO VG32). Various actuator types are listed, such as basic, roller lever, and hard‑steel roller options.
Detailed dimensional tables give mounting hole sizes, travel distances, and push‑button colour codes for each valve configuration. The sheet also includes ordering information and references to the SMC catalogue for further technical details.
| Operation pressure | 0 ~ 9.9 Bar |
|---|---|
| Fluid temperature | 5 ~ 60 °C |
| Cv factor | 1.0 (high flow) |
| Recommended lubricant | Turbine oil #1 (ISO VG32) |
| Port size | 4 |
| Valve type | 3/2 normally closed (and 5/3 twist selector) |
The VM200 operates at pressures from 0 to 9.9 Bar.
Turbine oil #1 (ISO VG32) is the recommended lubricant.
The series includes a 3/2 normally closed valve and a 5/3 twist‑selector version.
