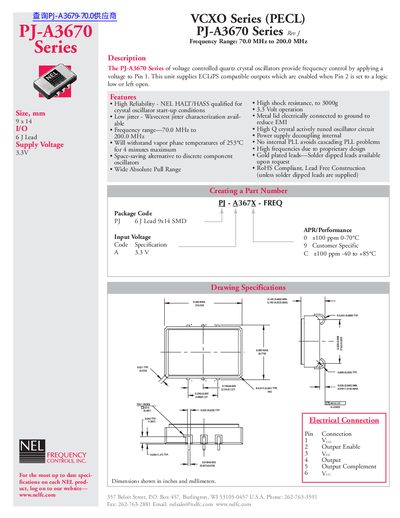

The PJ-A3670 Series of voltage controlled quartz crystal oscillators provide frequency control by applying a voltage to Pin 1. This unit supplies ECLiPS compatible outputs which are enabled when Pin 2 is set to a logic low or left open.
The PJ‑A3670 Series voltage‑controlled quartz crystal oscillators deliver precise frequency control via a voltage applied to Pin 1. They feature high reliability (NEL HALT/HASS qualified), low jitter, a wide absolute pull range, and a compact 9 mm × 14 mm SMD package with metal‑lid grounding for reduced EMI.
Electrical specifications include a 70.0 MHz to 200.0 MHz frequency range, 3.3 V nominal supply voltage, 60 mA supply current, and up to ±50 mA output current. The device operates from –40 °C to +85 °C, withstands 3000 g shock, and meets MIL‑STD‑202 mechanical shock and vibration requirements.
| Frequency Range | 70.0 MHz – 200.0 MHz |
|---|---|
| Supply Voltage | Nominal 3.3 V (3.135 V – 3.465 V) |
| Supply Current | 60 mA |
| Output Current | ±50 mA |
| Operating Temperature | –40 °C to +85 °C |
| Power Dissipation | 208 mW |
| Jitter (RMS) | 3 psec |
| Mechanical Shock | MIL‑STD‑202, Method 213 |
| Vibration | 0.060" double amplitude, 10 Hz‑55 Hz 35 g |
The device covers a frequency range from 70.0 MHz to 200.0 MHz.
It operates from a nominal 3.3 V supply (3.135 V – 3.465 V).
Typical supply current is 60 mA.
The RMS jitter is specified as 3 psec.
