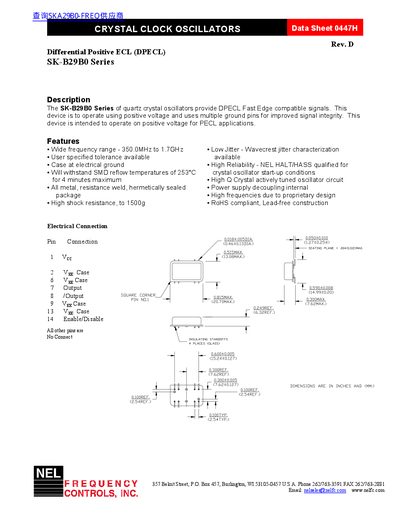

The SK-B29B0 Series of quartz crystal oscillators provide DPECL Fast Edge compatible signals. This device is to operate using positive voltage and uses multiple ground pins for improved signal integrity. This device is intended to operate on positive voltage for PECL applications.
The SK-B29B0 Series consists of quartz crystal oscillators designed to provide DPECL Fast Edge compatible signals. These devices operate using positive voltage and utilize multiple ground pins to improve signal integrity, making them suitable for PECL applications. The series is characterized by a wide frequency range from 350.0MHz to 1.7GHz and features low jitter with Wavecrest characterization.
The document provides comprehensive electrical characteristics including supply voltage (2.5V +/- 5%), output logic levels, rise and fall times up to 600 psec, and RMS jitter values. It also outlines mechanical specifications such as hermetic sealing, shock resistance up to 1500g, and soldering conditions compliant with industry standards.
| Frequency Range | 350.0MHz to 1.7GHz |
|---|---|
| Supply Voltage | 2.5V +/- 5% |
| Supply Current | 160 mA (Typical) |
| Operating Temperature | -55°C to +70°C |
| Rise & Fall Time | 600 psec (Max) |
| RMS Jitter | 0.3 psec (Min) / 0.5 psec (Typ) |
| Frequency Stability | +/- 100ppm |
The device operates in a wide frequency range from 350.0MHz to 1.7GHz.
With a 50 ohm termination, the typical supply current is 160 mA.
The device operates between -55°C and +70°C.
