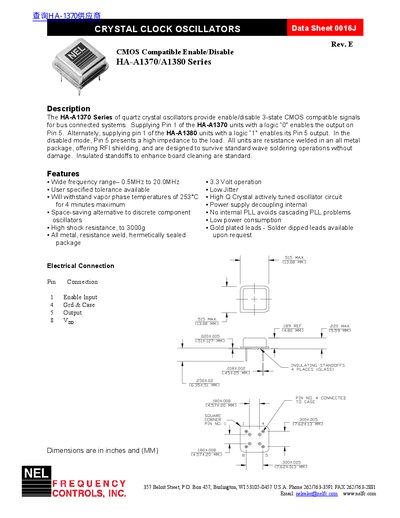

The HA-A1370/A1380 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems. These oscillators operate at a supply voltage of 3.3 Volts and have a wide frequency range of 0.5MHz to 20.0MHz. User specified tolerances are available. The HA-A1370/A1380 Series is designed to withstand vapor phase temperatures of 253°C for 4 minutes maximum. These oscillators are packaged in an all metal, resistance weld, hermetically sealed package.
The NEL HA-A1370 and HA-A1380 Series are quartz crystal oscillators designed to provide 3-state CMOS compatible signals with enable/disable functionality for bus-connected systems. The units feature a wide frequency range from 0.5MHz to 20.0MHz and operate at 3.3V.
| Frequency Range | 0.5MHz to 20.0MHz |
|---|---|
| Supply Voltage | 3.3V (Max 3.63V) |
| Output Current | +/- 16.0 mA |
The HA-A1370 and HA-A1380 series provide a wide frequency range from 0.5MHz to 20.0MHz.
Supplying Pin 1 with a logic '0' enables the output.
The maximum supply voltage is 3.63V.
They can withstand this temperature for a maximum of 4 minutes.
