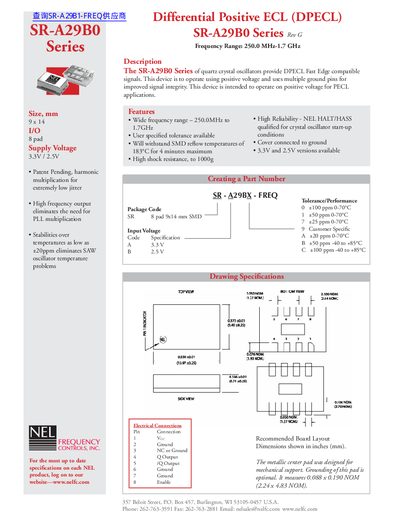

The SR-A29B0 Series of quartz crystal oscillators provide DPECL Fast Edge compatible signals. This device is to operate using positive voltage and uses multiple ground pins for improved signal integrity. This device is intended to operate on positive voltage for PECL applications. It has features such as wide frequency range, high frequency output, low jitter, and high stability.
The NEL SR-A29B0 Series provides DPECL Fast Edge compatible signals intended for positive voltage applications. These quartz crystal oscillators feature a wide frequency range of 250.0 MHz to 1.7 GHz and are available in both 3.3V and 2.5V versions.
| Frequency Range | 250.0 MHz to 1.7 GHz |
|---|---|
| Supply Voltage | 3.3V and 2.5V versions available |
| Package Size | 9x14 mm SMD |
| Operating Temperature | -55°C to +70°C (Standard) |
| Supply Current | 0.0 mA to 2.00V below Voc |
The device operates within a wide frequency range from 250.0 MHz to 1.7 GHz.
The SR-A29B0 Series is available in both 3.3V and 2.5V versions.
An input of Logic High disables the output, while an Open or Low voltage enables it.
